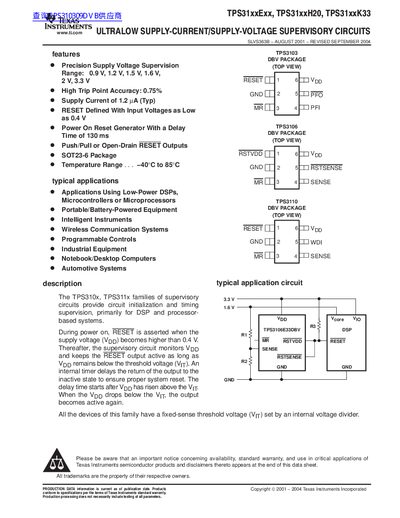

The document describes the basic characteristics of the TPS310x, TPS311x family of supervisory circuits, including the precision supply voltage supervision range, high threshold accuracy, low supply current, RESET definition, power-on reset generator, etc.
The TPS31xx series provides precision supply‑voltage supervision for low‑power DSPs, microcontrollers and microprocessors. It monitors the supply voltage, asserts a reset when the voltage falls below a threshold, and includes a programmable delay to ensure proper system start‑up.
Typical applications include portable battery‑powered equipment, intelligent instruments, wireless communication systems, industrial equipment, computers and automotive systems. The devices are offered in a 6‑pin SOT‑23 package and operate over a temperature range of –40 °C to 85 °C.
| Supply Voltage Range | 0.9 V to 3.3 V |
|---|---|
| Temperature Range | -40 °C to 85 °C |
| Reset Output (TPS3110) | Active‑low push‑pull |
| Supply Current (typ) | 1.2 A |
| Trip Point Accuracy | 0.75 % |
| Power‑On Reset Delay | 130 ms |
| Package | 6‑pin SOT‑23 |
| Threshold Voltage (Vj7) | ≈0.551 V |
It supports supply voltages from 0.9 V up to 3.3 V.
The reset threshold voltage is about 0.551 V.
They operate from –40 °C to 85 °C.
They are offered in a 6‑pin SOT‑23 package.
