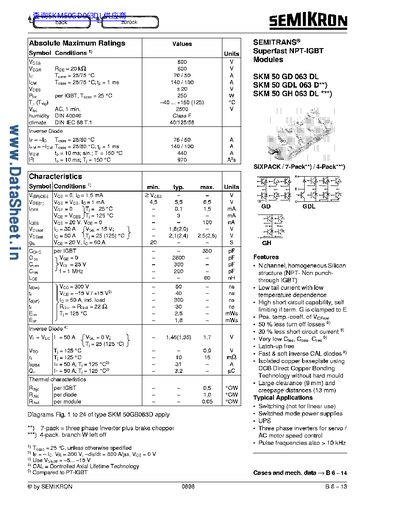

The SKM 50 GD 063 DL is a high‑power IGBT module from Semikron, designed for switching applications such as UPS systems, three‑phase inverters, and motor speed control. It features a 600 V rating, 50 A collector current, and a compact package with large creepage distances.
The datasheet lists absolute maximum ratings, detailed electrical characteristics, thermal impedance curves, and mechanical dimensions. It also includes typical application notes and switching‑mode power‑supply design guidance.
| Maximum collector‑emitter voltage (Vce) | 600 V |
|---|---|
| Maximum power dissipation at 25 °C | 250 W |
| Operating temperature range | -40 °C to +150 °C |
| Gate charge per IGBT | 350 pF |
It can withstand up to 600 V collector‑emitter voltage.
The datasheet specifies a maximum power dissipation of 250 W at 25 °C.
