The document describes the features and characteristics of heatsink products from Dinghao company.

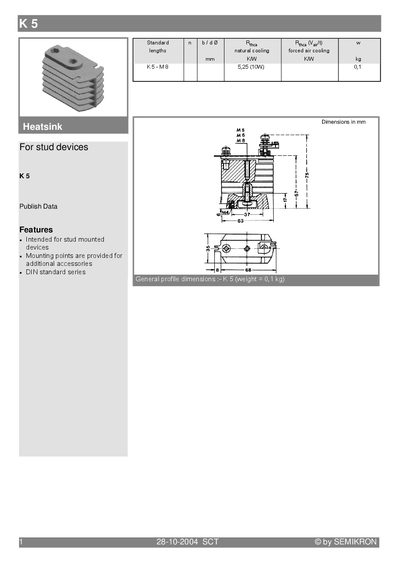

This handbook describes the Semikron K5 series of stud‑mounted power devices. It outlines the intended use, mounting options, and the DIN standard series classification.
Key sections include a list of features, detailed dimensions, thermal‑resistance curves for natural and forced‑air cooling, and a parts list with possible heatsink configurations and standard accessories.
| Mounting points | provided for additional accessories |
|---|---|
| Cooling methods | natural cooling, forced air cooling |
| Standard series | DIN |
Both natural cooling and forced‑air cooling are supported.
The K5 devices are part of the DIN standard series.
Configurations include Heatsink + B, Heatsink + S, Heatsink + |, Heatsink + | + T, Heatsink + | + S, and Heatsink + | + S + T with various part combinations.
