The SEMIPONTTM 6 series are high sensitivity, high resolution, low noise and high linearity optical fiber sensors for use in a wide range of pressure, displacement, strain and acceleration measurement applications.

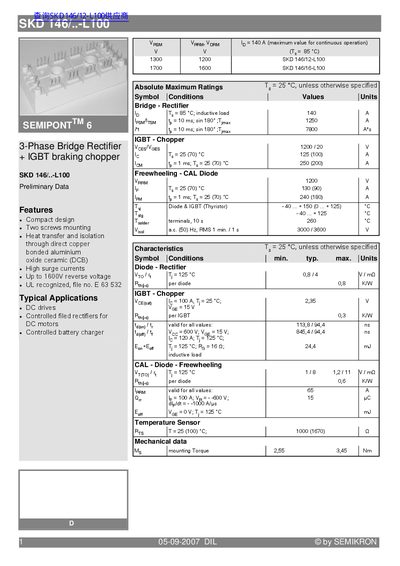

This document provides preliminary data for the Semikron SKD 146/..-L100 series of power modules. The device is designed as a compact solution featuring a three-phase bridge rectifier and an integrated IGBT braking chopper, suitable for applications such as DC drives and controlled battery chargers.
| Reverse Voltage (Bridge) | Up to 1600V |
|---|---|
| Continuous Current (Rectifier) | 140 A |
| Operating Temperature Range | -40... +150 °C |
| Mounting Torque | 2.55 to 3.45 Nm |
Typical applications include DC drives and controlled battery chargers.
Yes, the device is UL recognized with file number E 63 532.
