This datasheet introduces the basic information of BZV58C10, including functions, packages, pins, pin functions, current voltage characteristics, impedance characteristics, temperature characteristics, and interface characteristics.

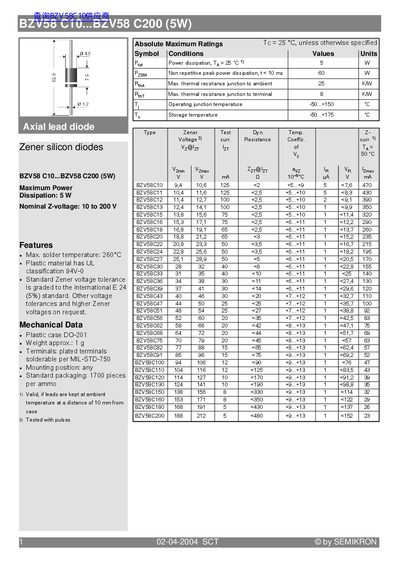

This document is a technical datasheet for the Semikron BZV58 series of zener silicon diodes. The components feature an axial lead design and are housed in a plastic case with DO-201 classification.
The diodes have a nominal Z-voltage range from 10 to 200 V and a maximum power dissipation of 5 W at Tc = 25 °C. They comply with international E 24 (5%) standard voltage tolerances, though other options are available on request.
| Maximum Power Dissipation | 5 W |
|---|---|
| Nominal Z-voltage range | 10 to 200 V |
| Max. solder temperature | 260°C |
| Plastic material classification | UL class 94V-0 |
| Voltage tolerance standard | E 24 (5%) |
| Case type | DO-201 |
| Operating junction temperature range | -50...+150 °C |
The maximum power dissipation at Tc = 25 °C is 5 W.
Yes, the standard tolerance is E 24 (5%), but other tolerances and higher voltages are available on request.
The nominal Z-voltage ranges from 10 to 200 V.
