2SA1215 is a PNP silicon transistor with high current capability and high power dissipation. It can be used for audio power amplifiers and DC-DC converters.

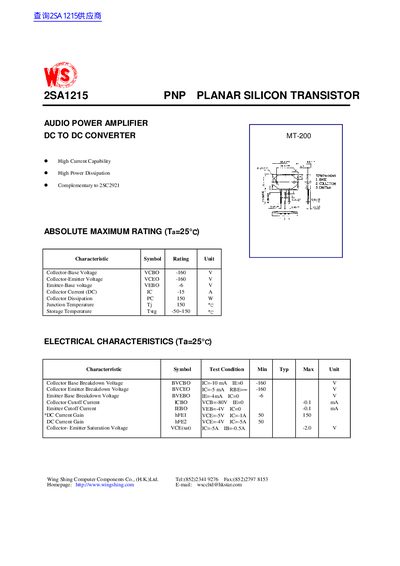

The 2SA1215 is a PNP planar silicon transistor designed for audio power amplifiers and DC‑DC converters. It offers high current capability and robust power dissipation.
Key electrical ratings include a collector‑base voltage of 160 V, collector‑emitter voltage of 160 V, collector current up to 15 A, and a power dissipation rating of 150 W. The device operates safely from –50 °C to 150 °C storage temperature.
| Collector‑Base Voltage (VCBO) | 160 V |
|---|---|
| Collector‑Emitter Voltage (VCEO) | 160 V |
| Emitter‑Base Voltage (VEBO) | 6 V |
| Collector Current (DC) | 15 A |
| Collector Dissipation (PC) | 150 W |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Tstg) | -50~150 °C |
The maximum collector‑emitter voltage is 160 V.
The transistor can handle up to 15 A of collector current.
It is rated for 150 W of collector dissipation.
