2SA1216 is a PNP planar silicon transistor that can be used in audio power amplifiers and DC/DC converters. The transistor has high current capability and high power dissipation capabilities and is a complementary to 2SC2922.
The 2SA1216 is a PNP planar silicon transistor designed for audio power amplifier and DC‑to‑DC converter applications. It offers high current capability and high power dissipation, and is complementary to the 28C2922 device.

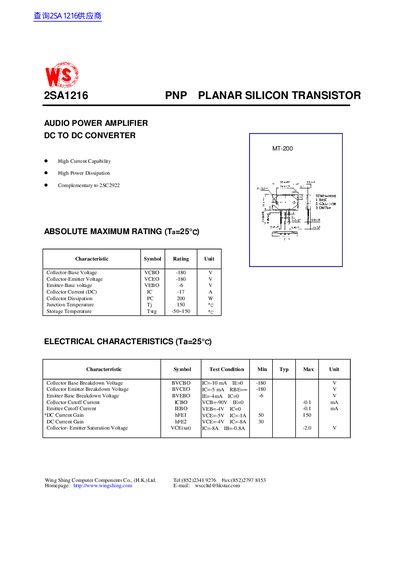

The datasheet lists absolute maximum ratings, electrical characteristics, and terminal definitions, including voltage limits, current limits, power dissipation, and gain specifications.
| Collector‑Base Voltage (VCBO) | -180 V |
|---|---|
| Collector‑Emitter Voltage (VCEO) | -180 V |
| Emitter‑Base Voltage (VEBO) | -6 V |
| Collector Current (DC) (Ic) | 17 A |
| Collector Dissipation (PC) | 200 W |
| Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Tstg) | -50~150 °C |
The maximum DC collector current is 17 A.
The device can withstand up to –180 V for collector‑base and collector‑emitter, and –6 V for emitter‑base.
