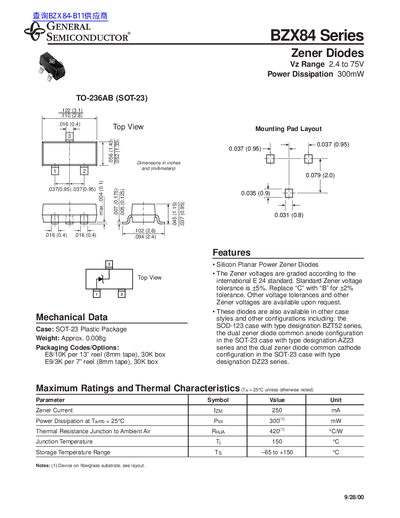

The document describes the features and characteristics of the 9/28/00, silicon planar power zener diodes, including the Zener voltage grading according to the international E 24 standard, standard Zener voltage tolerance, other case styles and configurations, and maximum ratings and thermal characteristics.
The BZX84 series consists of silicon planar power Zener diodes offered in a TO‑236AB (SOT‑23) plastic package. The series covers a wide Zener voltage range and includes options for different case styles and configurations.
The document lists electrical characteristics, maximum ratings, thermal data, and detailed characteristic curves such as breakdown, dynamic resistance, and temperature dependence, enabling designers to select the appropriate part for their applications.
| Zener Voltage Range | 2.4 to 75 V |
|---|---|
| Power Dissipation | 300 mW |
| Maximum Zener Current (Izm) | 250 mA |
| Thermal Resistance (J‑A) | 420 °C/W |
| Maximum Junction Temperature | 150 °C |
| Storage Temperature Range | -65 to +150 °C |
The maximum power dissipation is 300 mW.
The series covers Zener voltages from 2.4 V to 75 V.
The maximum Zener current is 250 mA.
