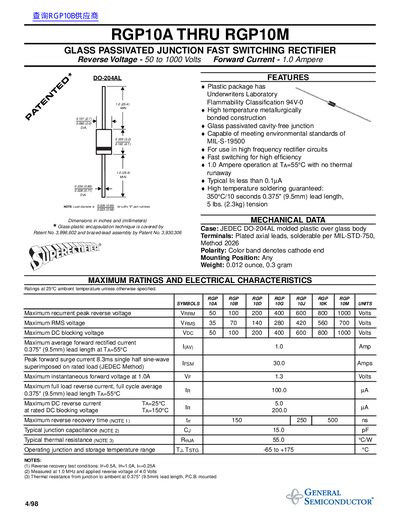

RGP10A THRU RGP10M Glass passivated junction fast switching rectifier. Reverse voltage is 50 to 1000 volts, and forward current is 1.0 amps.
The document provides technical specifications for a series of glass passivated junction fast switching rectifiers, model numbers ranging from RGP10A to RGP10M. These components are designed for use in high frequency rectifier circuits and feature plastic packages with Underwriters Laboratory Flammability Classification 94V-0.
| Package Type | DO-204AL molded plastic over glass body |
|---|---|
| Reverse Voltage Range | 50 to 1000 Volts |
| Forward Current | 1.0 Ampere |
| Operating Temperature Range | -65 to +175 C |
The plastic package has an Underwriters Laboratory Flammability Classification 94V-0.
The maximum reverse recovery time ranges from 150 to 500 ns depending on the specific model.
Yes, they are specifically designed for use in high frequency rectifier circuits.
