This document introduces the features and characteristics of the UF5400-UF5408 series ultrafast efficient plastic rectifier products, including reverse voltage, forward current, reverse recovery time, forward voltage, leakage, surge capability, and high temperature soldering.

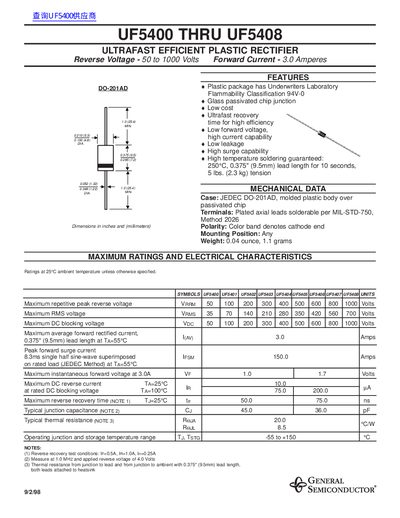

This document provides technical specifications for the General Semiconductor UF5400 series of ultrafast efficient plastic rectifiers. The devices are available in DO-201AD packages with reverse voltages ranging from 50 to 1000 Volts and a forward current capability of 3.0 Amperes.
| Package Type | DO-201AD |
|---|---|
| Reverse Voltage Range | 50 to 1000 Volts |
| Forward Current | 3.0 Amperes |
| Maximum Average Forward Rectified Current | 3.0 Amperes |
| Peak Forward Surge Current (IFsM) | 150.0 Amps |
| Maximum Instantaneous Forward Voltage (VF) | 1.0 to 1.7 Volts |
| Operating Junction Temperature Range | -55 to +150 °C |
The plastic package has Underwriters Laboratory Flammability Classification 94V-0.
The maximum reverse recovery time at Ta=25°C ranges from 50.0 to 75.0 ns depending on the specific model.
The maximum DC reverse current ranges from 75.0 to 200.0 microamperes depending on the model.
