This document describes the maximum electrical characteristics of a series of electronic devices, including nominal test maximum Zener current, maximum reverse impedance, maximum leakage current, etc. Each device has corresponding model, marking, and parameters.

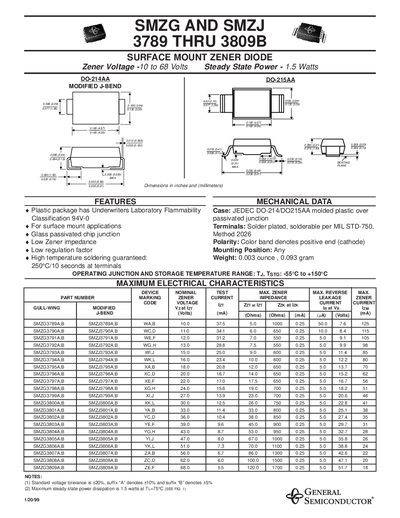

This document provides technical specifications for the SMZG and SMZJ series of surface mount zener diodes manufactured by General Semiconductor. The devices feature a modified J-bend plastic package in DO-214AA/DO-215AA formats with glass passivated chip junctions.
| Zener Voltage Range | -10 to 68 Volts |
|---|---|
| Steady State Power | 1.5 Watts |
| Package Type | DO-214AA DO-215AA Modified J-Bend |
| High Temp Soldering Guarantee | 250°C/10 seconds at terminals |
The standard voltage tolerance is +20%.
Suffix 'A' denotes a +10% tolerance and suffix 'B' denotes a +5% tolerance.
The maximum steady state power dissipation is 1.5 watts at TL=75°C.
