The BZV55 series Zener diodes are silicon planar power Zener diodes for use as low voltage stabilizer or voltage reference. The Zener voltages are graded according to the international E 24 standard. Higher Zener voltages and 1% tolerance available on request. Diodes available in these tolerance series: ±2% BZV55-B, ±3% BZV55-F, ±5% BZV55-C.

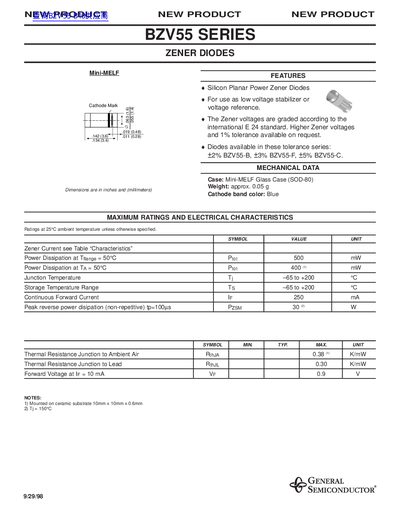

This document is a technical datasheet for the General Semiconductor BZV55 Series of silicon planar power zener diodes. These components are designed in a Mini-MELF glass case (SOD-80) and are intended for use as low voltage stabilizers or voltage references.
| Package Type | Mini-MELF Glass Case (SOD-80) |
|---|---|
| Cathode Band Color | Blue |
| Power Dissipation at Tflange = 50°C | 500 mW |
| Junction Temperature Range | -65 to +200 °C |
| Continuous Forward Current | 250 mA |
The series include +2% (B), +3% (F), and +5% (C).
The device can be stored between -65°C and +200°C.
