RGP25A to RGP25M are glass passivated junction fast switching rectifiers with a reverse voltage range of 50 to 1000 volts and a forward current of 2.5 amperes. The product features high temperature metallurgically bonded construction, glass passivated cavity-free junction, 2.5 ampere operation with no thermal runaway, typical reverse current less than 0.2µA, and fast switching for high efficiency.

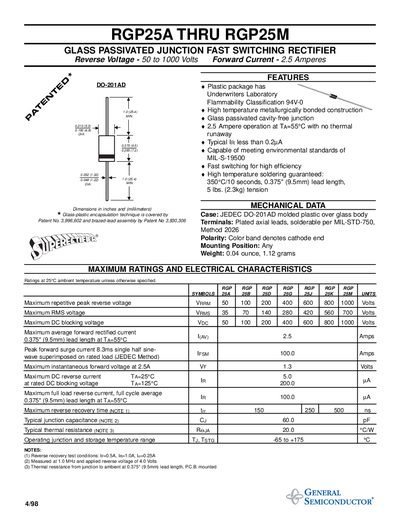

The RGP25A–RGP25M series are glass‑passivated junction fast‑switching rectifiers offered by General Semiconductor. They feature a plastic package with UL 94V‑0 flammability, high‑temperature metallurgical bonding, and can operate at 2.5 A without thermal runaway.
The datasheet provides maximum ratings such as reverse voltage up to 1000 V, forward current 2.5 A, and detailed characteristic curves for forward surge, reverse recovery, and junction capacitance. Mechanical data include a JEDEC DO‑201AD case, 0.375 in (9.5 mm) lead length, and a weight of 0.04 oz.
| Forward current | 2.5 A |
|---|---|
| Maximum average forward rectified current | 25 A |
| Maximum instantaneous forward voltage at 2.5 A | 1.3 V |
| Maximum DC reverse current (25 °C) | 5.0 A |
| Package type | JEDEC DO‑201AD molded plastic over glass body |
| Lead length (at 55 °C) | 0.375 in (9.5 mm) |
| Weight | 0.04 oz (1.12 g) |
It uses a JEDEC DO‑201AD molded plastic over glass body package.
The rectifier is rated for a continuous forward current of 2.5 A.
