This document is the datasheet for BZT52-C10 electronic component. BZT52-C10 is produced by ON Semiconductor. It is a silicon planar power zener diode. The zener voltage of BZT52-C10 is 10V with a tolerance of ±5%. The zener diode is packaged in SOD-123.

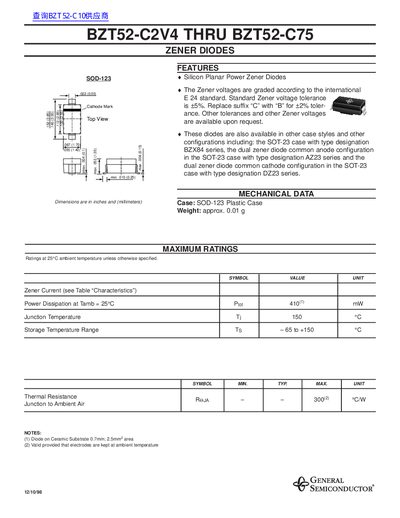

This document provides specifications and characteristics for the BZT52-C series of Silicon Planar Power Zener Diodes. The voltage ratings are graded according to the international E 24 standard with a standard tolerance of ±5%, though other tolerances and voltages may be available upon request.
The datasheet details maximum ratings such as power dissipation at 25°C (up to 410mW) and junction temperature limits. It includes comprehensive electrical characteristics tables for various Zener voltage values ranging from 2V4 to 75V, listing parameters like dynamic resistance, reverse voltage, and temperature coefficients.
| Thermal Resistance (Junction to Ambient) | 300 °C/W |
|---|---|
| Power Dissipation at Tamb = 25°C | 410 mW |
| Junction Temperature | 150 °C |
| Storage Temperature Range | -65 to +150 °C |
| Standard Zener Voltage Tolerance | ±5% |
The standard Zener voltage tolerance is ±5%, though replacing the suffix 'C' with 'B' provides a ±2% tolerance.
The maximum rated junction temperature is 150 °C.
