This document contains information on a product under development at Advanced Micro Devices. The product's model number is AM29PDL127H. This document provides detailed information about this product, including specifications and ordering numbers.

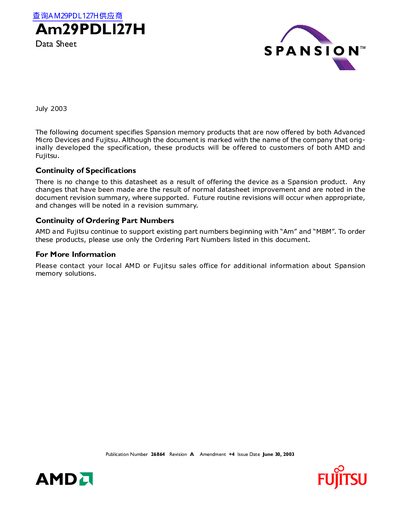

The document specifies the Spansion Am29PDL127H, a 128 Megabit (8 M x 16-Bit) CMOS Flash Memory with Enhanced Versatile I/O Control. Originally developed by Advanced Micro Devices, this product is now offered by both AMD and Fujitsu under the Spansion brand name.
The device operates at a single 3.0 volt power supply range of 2.7 to 3.6 volts and features a FlexBank architecture with four separate banks allowing up to two simultaneous operations per device. It supports fast page access times as low as 20 ns and includes security features such as Secured Silicon (SecSi) sector regions.
| Memory Capacity | 128 Megabit (8 M x 16-Bit) |
|---|---|
| Voltage Range | 2.7 to 3.6 V |
| Page Access Time | 20 ns |
| Random Access Time | 55 ns |
| Active Read Current | 55 mA |
| Program/Erase Current | 25 mA |
| Standby Mode Current | 1 µA |
| Data Retention | 20 years at 125°C |
The device requires a single power supply operation with a full voltage range of 2.7 to 3.6 volts.
Yes, it features Simultaneous Read/Write Operation allowing data to be continuously read from one bank while executing erase/program functions in another.
The device is offered in a 64-ball Fortified BGA, an 80-ball Fine-pitch BGA, and various Multi Chip Packages (MCP).
