This product is a 48V input, 1.5V/35A output DC/DC converter with a power of 100W, high efficiency, standard package, and fixed frequency.

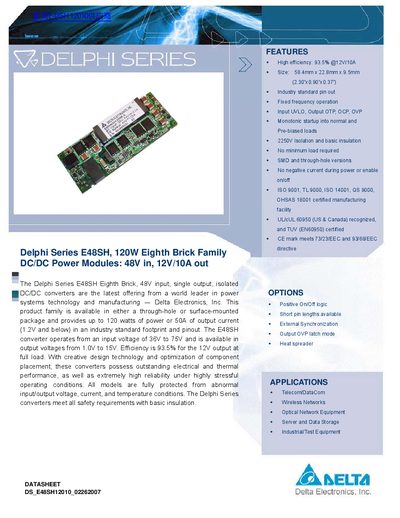

The Delphi Series E48SH is a 48 V input, single‑output isolated DC/DC power module from Delta Electronics. It delivers up to 120 W (12 V/10 A) with high efficiency and extensive protection features.
The module complies with UL/EN safety standards, offers both through‑hole and SMD packages, and includes options such as remote on/off logic, external synchronization, and heat‑spreader variants. Detailed electrical specifications, design considerations, and mechanical drawings are provided.
| Input Voltage Range | 36 V – 75 V |
|---|---|
| Output Voltage Options | 1.0 V – 15 V |
| Maximum Output Current | 10 A |
| Efficiency @12 V/10 A | 93.5 % |
| Isolation Voltage | 2250 Vdc |
| Switching Frequency | 200 kHz |
| Physical Size | 58.4 mm × 22.8 mm × 9.5 mm |
| Weight | 25 g |
The module achieves 93.5 % efficiency at a 12 V/10 A full‑load condition.
It includes over‑current, over‑voltage, over‑temperature, input UVLO, output OVP, OCP, and basic insulation protection.
The input‑to‑output isolation voltage is rated at 2250 Vdc.
A low AC‑impedance source is recommended; if source inductance exceeds a few µH, add a 10‑100 µF electrolytic capacitor near the module.
