Type 361R 105 °C is an industrial grade miniature radial leaded capacitor suitable for industrial applications, with a operating temperature range of -40 °C to +105 °C. It features excellent ripple capability and low ESR and ESL. Also available with three mounting leads.
The 361R series are miniature, industrial‑grade radial leaded capacitors designed for high‑value, high‑ripple applications. They operate from –40 °C up to +105 °C and are available with two‑lead (361R) or three‑lead (366R) configurations.

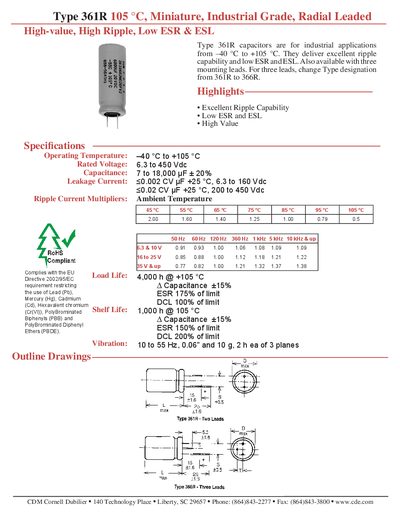

The document provides detailed specifications, case dimensions, part numbering, performance curves, and compliance information such as RoHS certification. Engineers can use the tables to select appropriate capacitance, voltage, and ESR values for their designs.
| Rated Voltage Range | 6.3 Vdc to 450 Vdc |
|---|---|
| Capacitance Range | 7 µF to 18 000 µF (+20 %) |
| Load Life at +105 °C | 4 000 h |
| RoHS Compliance | Yes |
Yes, it complies with the EU RoHS Directive 2002/95/EC.
It is rated for a load life of 4 000 hours at +105 °C.
Two‑lead (type 361R) is standard; a three‑lead version is offered as type 366R.
