The features of the CIR-UW36YC variable zoom infrared waterproof camera include optional dual power design (AC24V/DC12V), optional network function, 550 lines, 1/3-inch Sony high-definition CCD, and maximum working current DC1600mA.
The CIR UW36YC is a variable‑focus infrared waterproof camcorder equipped with a 1/3" Sony high‑resolution CCD sensor, 550‑line resolution, and 190 infrared LEDs. It supports dual power inputs (AC24V or DC12V), network connectivity, and offers an IP66 waterproof rating, making it suitable for harsh environments.

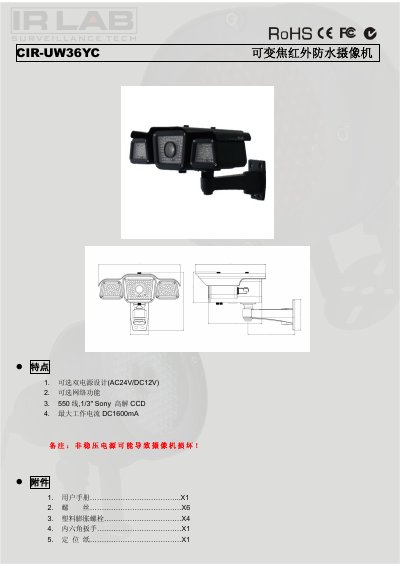

The manual lists the supplied accessories (user manual, screws, plastic expansion bolts, hex wrench, positioning paper) and details the full technical specifications, including lens range, video output, operating temperatures, and packaging dimensions. This manual is written in Chinese.
| Waterproof rating | IP66 |
|---|---|
| Sensor | 1/3" Sony high‑resolution CCD |
| Resolution | 550 lines |
| Infrared LEDs | 190 pcs |
| Video output | 1V p‑p, 75Ω |
| Lens | 9~22mm manual zoom, auto aperture |
| Field of view (horizontal) | 32°~14° |
| Working voltage | DC12V±10% |
| Maximum working current | DC1600mA |
| Dimensions | 340×278×200 mm |
| Weight | 2750 g |
| Operating temperature | -30 °C to +40 °C |
| Storage temperature | -30 °C to +60 °C |
| Infrared illumination distance | 70~75 m |
| Signal‑to‑noise ratio | ≥52 dB |
It can be powered by either AC24V or DC12V, with a dual‑power design.
The camcorder includes 190 infrared LEDs.
The camera is rated IP66 for waterproof protection.
The lens provides a manual zoom from 9 mm to 22 mm with an automatic aperture.
