The 7530 G2 handheld computer is a rugged and durable handheld terminal based on Windows CE 5.0. It has an IP67 dust and water resistance rating, can withstand a 2-meter drop, and has a working temperature range of -30℃ to +60℃. In addition, the 7530 G2 also has flexibility, integration, and ergonomics, making it a very suitable product for use in harsh environments.
The 7530 G2 handheld computer is a rugged, Windows CE 5.0‑based device designed for harsh environments such as cold storage and ports. It offers IP67 protection, a -30 °C to +60 °C operating temperature range, and a 1/4 VGA backlit color touchscreen with a hard‑key keyboard.

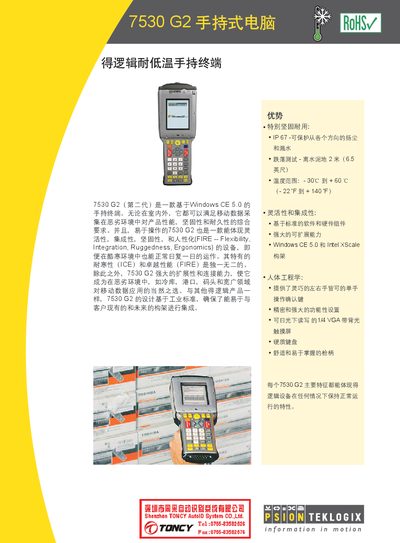

The manual provides detailed technical specifications, including a 520 MHz XScale PXA‑270 processor, 128 MB SDRAM, various wireless interfaces (802.11b/g, Bluetooth), barcode scanning capabilities, and expandable storage options. It also covers power management, environmental ratings, and available accessories. This manual is written in Chinese.
| Processor | 520 MHz XScale PXA‑270 |
|---|---|
| System Memory | 128 MB SDRAM |
| Flash Memory | 64 MB FLASH |
| Operating System | Windows CE 5.0 |
| IP Rating | IP67 |
| Operating Temperature | -30 °C to +60 °C |
| Dimensions | 270 mm × 100 mm × 85 mm |
| Weight | 950 g |
| Battery Life (standard) | Up to 12 hours continuous use |
It runs Windows CE 5.0.
It operates from –30 °C to +60 °C.
The device supports 802.11b/g Wi‑Fi and Bluetooth 2.4 GHz.
The standard lithium battery provides up to 12 hours of continuous use.
