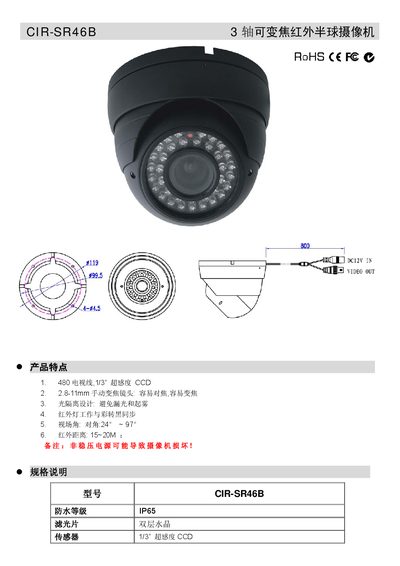

The features of the CIR-SR46B 3-axis varifocal infrared hemispherical camera include: 480 TV lines resolution, 1/3” high sensitivity CCD sensor, 2.8-11mm manual zoom lens, light isolation design, synchronization of infrared light and color-to-black transition, field of view angle of 24° ~ 97°, and infrared distance of 15~20M.
This manual describes the ROHS CIR‑SR46B infrared half‑ball camcorder, featuring a 13" super‑sensitivity CCD sensor and a 2.8‑11 mm manual zoom lens. The camera offers a diagonal viewing angle of 24°‑97° and is protected to IP65 rating for water resistance.
Key specifications include DC12 V operating voltage, a maximum current draw of 300 mA, dimensions of 120 × 100 mm, weight of 950 g, and operating temperature range of –30 °C to +40 °C. The document also lists accessories, packaging details, and compliance information. This manual is written in Japanese.
| Model | CIR‑SR46B |
|---|---|
| Sensor | 13" super‑sensitivity CCD |
| Lens focal length | 2.8‑11 mm manual zoom |
| Diagonal viewing angle | 24°‑97° |
| Power supply | DC12 V |
| Maximum current | 300 mA |
| Weight | 950 g |
| Dimensions | 120 × 100 mm |
| Operating temperature | -30 °C to +40 °C |
| Storage temperature | -30 °C to +60 °C |
| IP rating | IP65 |
| NTSC pixel resolution | 811 × 508 |
| PAL pixel resolution | 795 × 596 |
| NTSC frame rate | 60 Hz |
| PAL frame rate | 50 Hz |
It operates from a DC12 V power supply.
The camera draws up to 300 mA under maximum load.
The camcorder measures 120 × 100 mm and weighs 950 g.
It is rated IP65 for water and dust resistance.
