2SD2652 is a low frequency amplifier from ROHM. It has a maximum collector current of 1.5A and a low collector-emitter saturation voltage of 200mV.
This document describes the ROHM 2SD2652 N‑PN transistor intended for general‑purpose amplification up to 12 V and 1.5 A. Key features include a large collector current capability and a low collector saturation voltage.

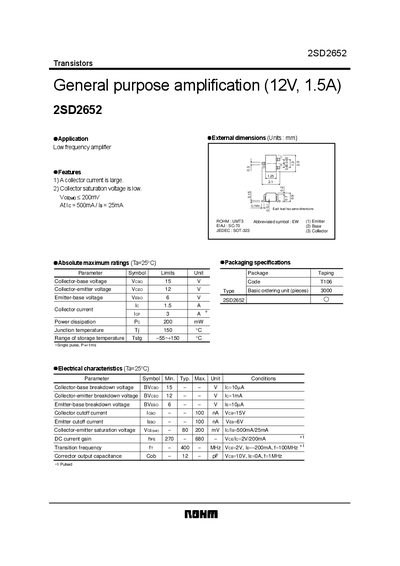

The datasheet lists absolute maximum ratings, packaging details, and extensive electrical characteristics such as voltage limits, current limits, power dissipation, and transition frequency. Graphical curves illustrate DC current gain, saturation voltage, and safe operating area.
| Collector‑base voltage (Vcbo) | 15 V |
|---|---|
| Collector‑emitter voltage (Vceo) | 12 V |
| Emitter‑base voltage (Vebo) | 6 V |
| Collector current (Ic) | 15 A |
| Power dissipation (Pd) | 200 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
| Transition frequency (fT) | 400 MHz |
The transistor can tolerate up to 15 V between collector and base.
The device can dissipate up to 200 mW of power.
The maximum junction temperature is 150 °C.
The transistor can be stored from –55 °C to +150 °C.
