The BCX71H is a ROHM PNP small signal transistor that is ideal for switching and AF amplifier applications.

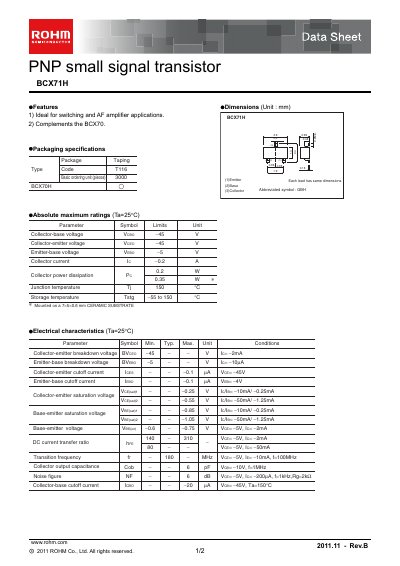

This data sheet describes the BCX71H PNP small‑signal transistor, highlighting its suitability for switching and audio‑frequency amplifier applications. It lists key features, dimensions, packaging information, absolute maximum ratings, and detailed electrical characteristics.
The document also includes typical application notes, storage and handling guidelines, and legal notices. The transistor is supplied in a 7 × 5 × 0.6 mm ceramic substrate package with a type code 7116 and a basic ordering unit of 3000 pieces.
| Collector‑base voltage (Vcbo) | 45 V |
|---|---|
| Collector‑emitter voltage (Vceo) | 5 V |
| Emitter‑base voltage (Vebo) | 5 V |
| Collector current (Ic) | 0.2 A |
| Power dissipation (Pc) | 0.2 W |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 to 150 °C |
| Package dimensions | 7 × 5 × 0.6 mm |
| Transition frequency (fT) | 180 MHz |
The BCX71H can withstand up to 5 V collector‑emitter voltage.
It is supplied in a ceramic substrate package with type code 7116 and a basic ordering unit of 3000 pieces.
The device can be stored from –55 °C to 150 °C.
