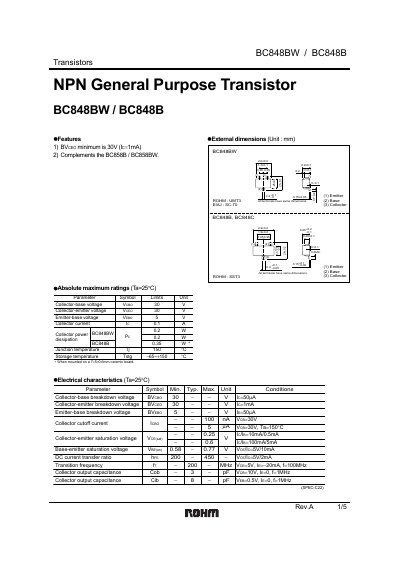

ROHM BC848BW / BC848B NPN General Purpose Transistor Datasheet

BC848BW / BC848B is an NPN general purpose transistor with a minimum BVCEO of 30V, complementing BC858B / BC858BW.

Brand: ROHM
Category: Other Electronics
Document type: Datasheet
Language: Chinese
Pages: 6
File format: PDF
File size: 146 KB
Published: 01 June, 2012
Updated: 28 September, 2023
MD5 checksum: 3EF39A6A209C0E9E6C1E6F1F4309EC32
PDF: ROHM BC848BW / BC848B NPN General Purpose Transistor Datasheet PDF

About this manual

This datasheet provides the key electrical parameters, absolute maximum ratings and packaging information for the ROHM BC848BW and BC848B NPN general‑purpose transistors. It includes characteristic curves such as collector‑emitter voltage, current gain and noise performance.

The document also contains packaging specifications, typical application circuit examples and legal notices regarding export control and usage restrictions. It is intended for designers of audio‑visual, office‑automation, communications and other electronic equipment. This manual is written in Chinese.

What's inside

Features
Absolute Maximum Ratings
Electrical Characteristics
Packaging Specifications
Characteristic Curves
Noise Characteristics
Appendix

Specifications

Packaging Type (BC848BW)	UMT3
Packaging Type (BC848B)	SST3

Frequently asked questions

What packaging type is used for the BC848BW transistor?

The BC848BW is supplied in a UMT3 (SC‑70) package.
