2SD2701 is a low-frequency amplifier with large current and low saturation voltage.

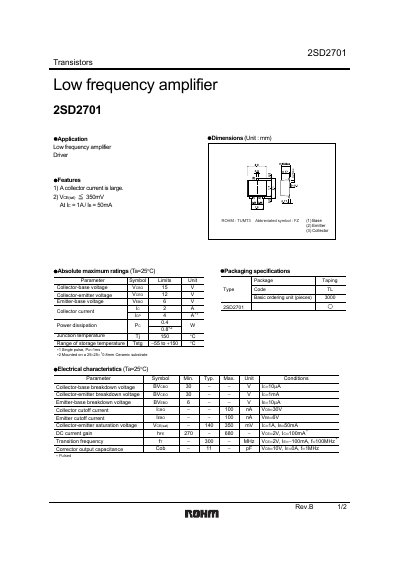

This document describes the ROHM 2SD2701 low‑frequency amplifier transistor. Key features include a large collector current capability and a low VCE(sat) of up to 350 mV at 1 A.
The datasheet lists absolute maximum ratings, packaging dimensions, electrical characteristics, and characteristic curves, along with usage notes and export control information for designers.
| Maximum collector current (IC) | 1 A |
|---|---|
| Collector‑emitter saturation voltage (VCE(sat)) | ≤ 350 mV at IC = 1 A |
| DC current gain (hFE) | 270 – 680 |
| Collector‑base voltage rating (VCBO) | 30 V |
The transistor can handle up to 1 A of collector current.
The collector‑emitter saturation voltage is ≤ 350 mV at 1 A.
The DC current gain ranges from 270 to 680.
