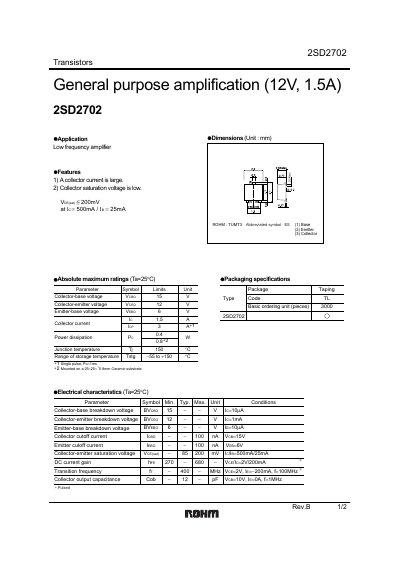

2SD2702 is a bipolar transistor produced by ROHM. It is suitable for low frequency amplifier circuits. Its features are large collector current and low collector saturation voltage (200mV@IC=500mA/IB=25mA).
This document describes the ROHM 2SD2702 NPN transistor, intended for low‑frequency amplification applications. It lists absolute maximum ratings, electrical characteristics, and typical performance curves.
Key data include a collector current rating of 1.5 A, power dissipation of 3 W, and a transition frequency of 100 MHz. Package dimensions are 25 × 25 × 0.8 mm on a ceramic substrate, and the part is supplied in tape form.
| Collector‑Emitter Saturation Voltage (VCE(sat)) | 200 mV at IC = 500 mA / IB = 25 mA |
|---|---|
| Transition Frequency (fT) | 100 MHz |
| Package Dimensions | 25 × 25 × 0.8 mm (ceramic) |
At a collector current of 500 mA (with 25 mA base current) the saturation voltage is about 200 mV.
The transistor has a transition frequency of approximately 100 MHz.
