2SD2675 is a general purpose amplifier suitable for low frequency amplifier application. It features a large collector current and a low collector saturation voltage (VCE(sat): max. 350 mV).
The 2SD2675 is a general‑purpose amplification transistor rated for 30 V and up to 1 A collector current. It features a low collector‑saturation voltage (max 350 mV at IC = 500 mA, IB = 25 mA) and is supplied in a 2SD2675TL 3000 package mounted on a 25 × 25 × 0.8 mm ceramic substrate.

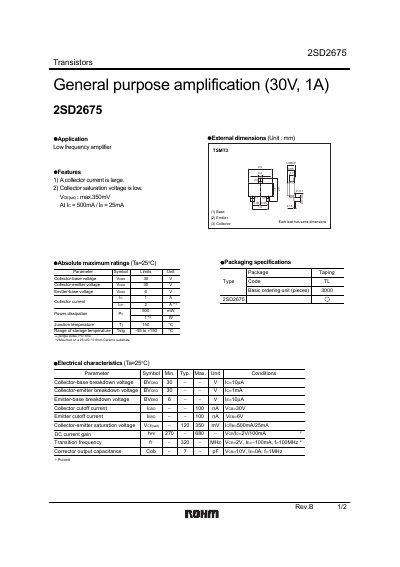

The document lists absolute maximum ratings, electrical characteristics, and a series of characteristic curves covering current gain, saturation voltages, switching times, and capacitances. An appendix notes that the device is intended for ordinary electronic equipment and advises consultation with Rohm sales for high‑reliability applications.
| Collector‑emitter saturation voltage (VCE(sat)) | max 350 mV at IC = 500 mA, IB = 25 mA |
|---|---|
| Transition frequency (fT) | 100 MHz |
The transistor is rated for up to 1 A collector current.
The maximum VCE(sat) is 350 mV at IC = 500 mA and IB = 25 mA.
It uses the 2SD2675TL 3000 package mounted on a 25 × 25 × 0.8 mm ceramic substrate.
