2SD2696 is a NPN silicon transistor produced by ROHM. It has the characteristic of low saturation voltage and can be widely used in switching circuits.
The 2SD2696 is a low‑frequency NPN silicon epitaxial planar transistor designed for amplification applications. It offers a 400 mA collector current class in a compact 1208‑size package.

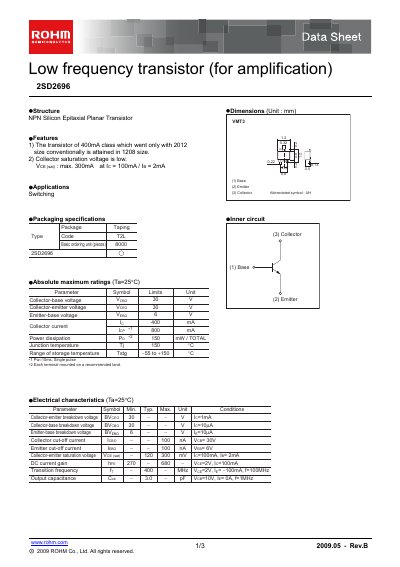

The datasheet lists key specifications such as voltage ratings, power dissipation, transition frequency, and capacitances, along with typical output characteristic curves and application notes for reliable circuit design.
| Collector current (Ic) max | 400 mA |
|---|---|
| Junction temperature (Tj) | 150 °C |
| Transition frequency (fT) | 400 MHz |
The collector current is limited to 400 mA.
The transistor has a transition frequency of 400 MHz.
