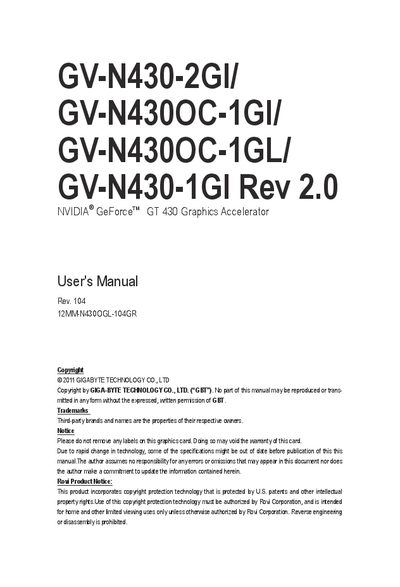

This document is the user manual for GV-N430-2GI/ GV-N430OC-1GI/ GV-N430OC-1GL/ GV-N430-1GI Rev 2.0 NVIDIA GeForce GT 430 graphics accelerator. The manual provides specifications and features of the product, and reminds users not to remove any labels to avoid voiding the warranty.
This manual covers the Gigabyte GV‑N430 series graphics accelerator, which is powered by an NVIDIA GeForce GT 430 GPU and offers PCI‑Express 2.0 connectivity, DDR3 memory options, and multiple video outputs. It guides users through hardware installation, driver setup, and basic configuration of the NVIDIA Control Panel.
The document includes sections on minimum system requirements, board layout, software installation, troubleshooting tips, BIOS re‑flashing in MS‑DOS mode, resolution and color‑depth tables, regulatory statements, and an appendix with additional reference information.
| GPU | NVIDIA GeForce GT 430 |
|---|---|
| Memory | 2 GB DDR3 (GV‑N430‑2GL) or 1 GB DDR3 (other models) |
| Memory | 1 GB DDR3 (GV‑N430‑1GI/1GL) |
| Interface | PCI Express 2.0 |
| Video Outputs | 1 HDMI, 1 D‑Sub, 1 DVI‑I |
| Video Outputs | 1 HDMI, 1 D‑Sub, 1 DVI‑I |
| Video Outputs | 1 HDMI, 1 D‑Sub, 1 DVI‑I |
| DirectX Support | DirectX 11 |
| HDCP | Supported |
| Minimum CPU | Intel Core 2 or AMD Athlon/Phenom |
| Minimum System Memory | 128 MB (2 GB recommended) |
| Recommended Power Supply | 400 W or higher |
It uses the NVIDIA GeForce GT 430 graphics processing unit.
The card provides one HDMI, one D‑Sub, and one DVI‑I connector.
A Intel Core 2 or AMD Athlon/Phenom CPU, at least 128 MB of RAM (2 GB recommended), a 400 W power supply, and Windows 7/Vista/XP.
