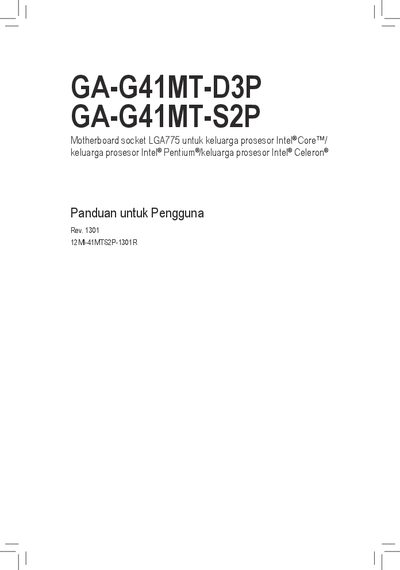

This is a GA-G41MT-D3P GA-G41MT-S2P Motherboard socket LGA775 user manual, which introduces the features and usage of the motherboard.
This user manual explains how to install and configure the Gigabyte GA‑G41MT‑D3P and GA‑G41MT‑S2P motherboards. It includes hardware installation procedures, BIOS configuration, driver installation, and troubleshooting tips.
The document also lists the technical specifications such as supported CPUs, chipset details, memory limits, onboard audio and LAN, expansion slots, and form factor, together with safety precautions and regulatory compliance information.
| Chipset | North Bridge: Intel® G41 Express; South Bridge: Intel ICH7 |
|---|---|
| Memory | 2× 1.5 V DDR3 DIMM, up to 8 GB, dual‑channel |
| Onboard Audio | Codec VIA VT 2021 / Realtek ALC889, 2/4/5.1/7.1‑channel |
| LAN | Atheros AR8151 10/100/1000 Mbit |
| Form Factor | Micro ATX, 24.4 cm × 19.4 cm |
Disconnect the AC power by unplugging the power cord, use an anti‑static wrist strap, avoid touching contacts, and place the board on an anti‑static surface.
The motherboard provides four SATA 3 Gb/s connectors, supporting up to four SATA devices.
It supports Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium, and Celeron processors in the LGA775 package.
