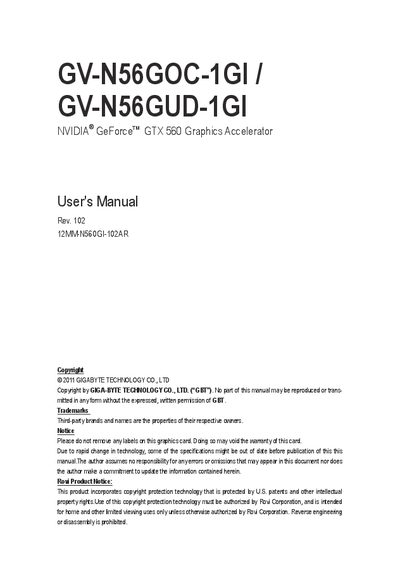

GV-N56GOC-1GI / GV-N56GUD-1GI NVIDIA ® GeForce TM GTX 560 Graphics Accelerator User's Manual, introduces the features and characteristics of this graphics card, such as hardware installation, driver installation, etc.
This manual provides step‑by‑step hardware installation instructions for the GV‑N56GOC‑1GI and GV‑N56GUD‑1GI graphics cards, including board layout, power‑connector setup, and anti‑static precautions. It also details software installation, driver setup, and how to use the GIGABYTE Easy Boost utility.
Additional sections cover SLI configuration requirements, troubleshooting tips, BIOS re‑flashing, resolution and color‑depth tables, and regulatory information such as RoHS and WEEE compliance.
| GPU | NVIDIA GeForce GTX 560 |
|---|---|
| Memory | 1 GB GDDR5 |
| PCI Express | PCI Express 2.0 |
| DirectX Support | DirectX 11 |
| SLI Support | NVIDIA SLI |
| Display Connectors | 2 × Dual‑Link DVI‑I, 1 × mini HDMI |
| Power Connectors | Two 6‑pin PCI Express auxiliary power connectors |
Each card requires two 6‑pin PCI Express auxiliary power connectors from the computer power supply.
The card provides two Dual‑Link DVI‑I connectors and one mini HDMI connector.
Two identical GV‑N56GOC‑1GI or GV‑N56GUD‑1GI cards, an SLI‑certified motherboard with two PCIe x16 slots, a 650 W (or higher) power supply, and an SLI bridge connector.
