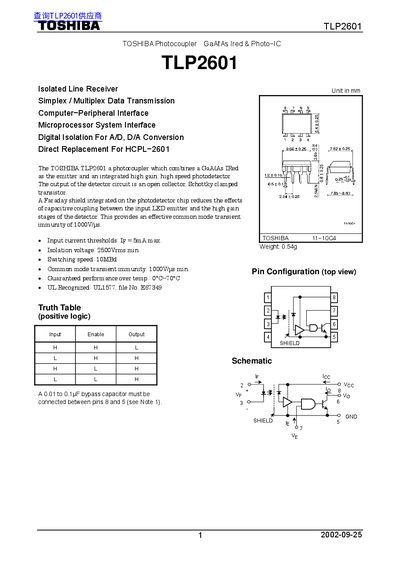

TLP2601 is a photocoupler that combines a GaAℓAs IRed as the emitter and an integrated high gain, high-speed photodetector. The output of the detector circuit is an open collector, Schottky clamped transistor. A Faraday shield integrated on the photodetector chip reduces the effects of capacitive coupling between the input LED emitter and the high gain stages of the detector, providing an effective common mode transient immunity of 1000V/µs.
The TLP2601 is a GaAs‑based photocoupler that combines a high‑gain photodetector with a Schottky‑clamped open‑collector output. It offers 2500 Vrms isolation, 1000 V/ps common‑mode transient immunity, and a switching speed of 1 OMBd.
The document provides recommended operating conditions, electrical and switching characteristics, test circuit examples, and safety restrictions for use in general electronics applications.
| Isolation voltage | 2500 Vrms min. |
|---|---|
| Switching speed | 1 OMBd |
| Input current threshold (low level) | 5 mA max. |
| Weight | 0.54 g |
The TLP2601 provides a minimum isolation voltage of 2500 Vrms.
The recommended operating temperature range is 0 °C to 70 °C.
