IF VRRM's features are that Symbol Units can be selected via SKCD Symbol Units.

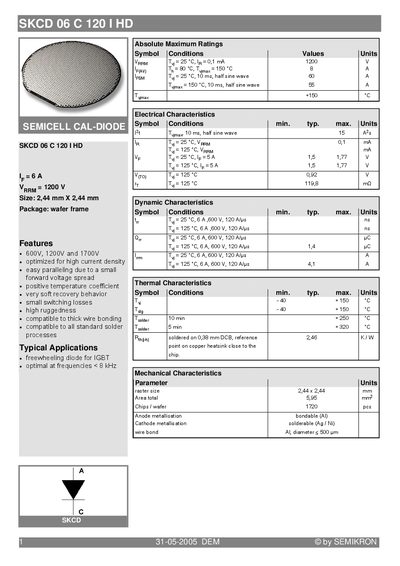

The SKCD 06 C 1201 HD is a high‑current, high‑voltage diode optimized for low forward voltage spread, positive temperature coefficient, soft recovery and low switching losses. It is compatible with thick‑wire bonding and standard solder processes.
Typical applications include free‑wheeling diodes for IGBT modules, especially at frequencies below 8 kHz. The document lists absolute maximum ratings, electrical, dynamic, thermal and mechanical characteristics for design reference.
| Reverse voltage (V_RRM) | 1200 V |
|---|---|
| Package size | 2.44 mm × 2.44 mm |
| Maximum junction temperature (Tmax) | +150 °C |
| Reverse recovery time (tr) | 120 ns |
The diode is rated for a reverse voltage of 1200 V.
The package measures 2.44 mm by 2.44 mm.
