This document introduces the features and characteristics of SEMITRANS® 2 series IGBTs, including the power, voltage, current, and package information.

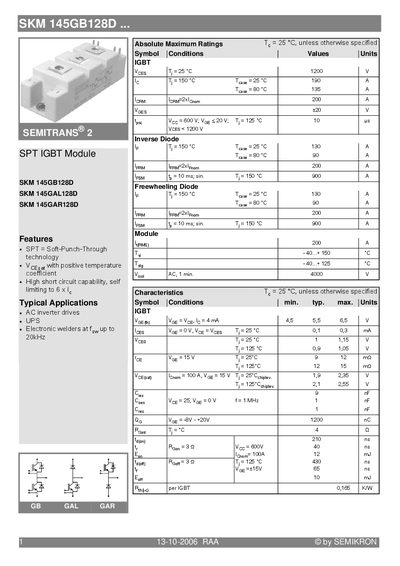

This datasheet describes the SKM 145GB128D IGBT power module from Semikron. It lists absolute maximum ratings, electrical characteristics, and key features such as Soft‑Punch‑Through technology and high short‑circuit capability.
The document includes typical application examples (AC inverter drives, UPS, electronic welders), characteristic curves (output, turn‑on/off energy, gate charge), and detailed switching and thermal performance data.
| Collector‑emitter voltage (Vces) | 1200 V |
|---|---|
| Collector current (Ic) at 25 °C | 190 A |
| Collector current (Ic) at 80 °C | 135 A |
| Gate‑emitter voltage (Vge) | -15 V |
| Emitter‑collector voltage (Veo) | 600 V |
The module is rated for a maximum Vces of 1200 V.
It can carry up to 190 A at a case temperature of 25 °C.
The gate‑emitter voltage is limited to –15 V.
