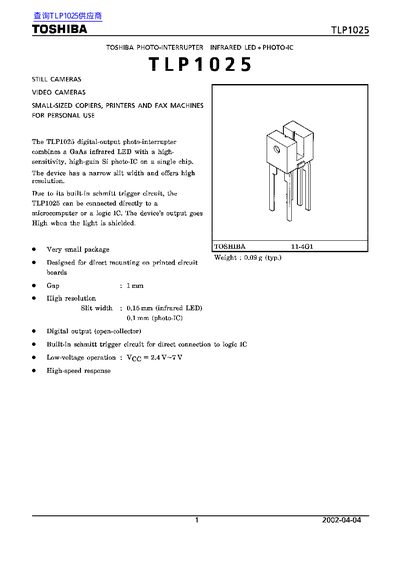

The TLP1025 is a digital‑output photo‑interrupter that combines a GaAs infrared LED with a high‑sensitivity Si photo‑IC on a single chip. It features a narrow slit width, built‑in Schmitt trigger, and can be directly connected to microcontrollers or logic ICs.
The document lists maximum ratings, recommended operating conditions, optical and electrical characteristics, mechanical dimensions, and safety precautions. It also outlines restrictions on product use and handling guidelines for reliable integration into electronic designs.
| Forward Current Ip (typ.) | 12–20 mA |
|---|---|
| Supply Voltage Voc | 2.4–7 V |
| Low Level Output Current ToL | ≤10 mA |
| Operating Temperature | -25 °C to 85 °C |
| Weight (typ.) | 0.09 g |
The recommended supply voltage range is 2.4 V to 7 V.
The device can be stored between –40 °C and 100 °C.
