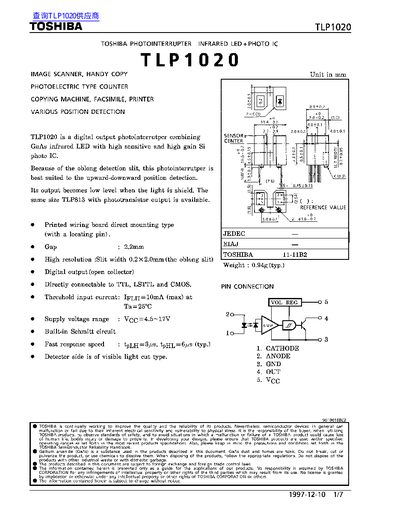

The TLP1020 combines a GaAs infrared LED with a high‑sensitivity Si photo IC to provide a digital output photointerrupter suitable for position detection in copying machines, facsimiles and printers. It features an open‑collector output that can be directly connected to TTL, LSTTL and CMOS circuits, a wide supply voltage range, and a fast propagation time.
Typical applications include upward‑downward position detection, shutter control and optical sensing where a compact, high‑speed, low‑power component is required. The device is supplied in a printed wiring board direct‑mount package with a locating pin and is designed for operation from –25 °C to 85 °C.
| Supply voltage range | 4.5 V ~ 17 V |
|---|---|
| Output voltage (open collector) | 30 V |
| LED forward current | 23 mA ~ 30 mA |
| Propagation delay (low‑to‑high) | ≈ 3 µs |
| Weight | 0.94 g (typ.) |
| Operating temperature range | -25 °C ~ 85 °C |
| Storage temperature range | -40 °C ~ 100 °C |
The device operates from 4.5 V up to 17 V.
Its propagation delays are about 3 µs low‑to‑high and 6 µs high‑to‑low.
