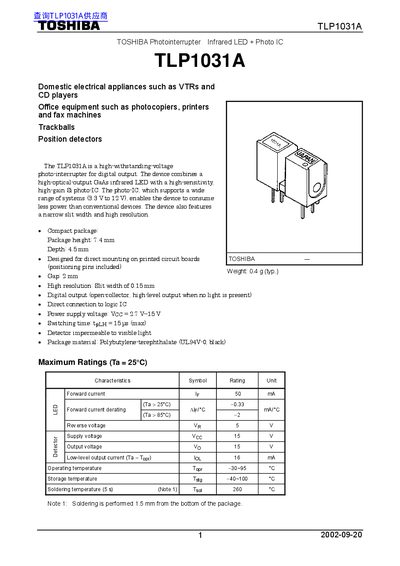

TLP1031A is a high-withstanding-voltage photo-interrupter for digital output. It is suitable for domestic electrical appliances, office equipment, trackballs, and position detectors. The device combines a high-optical-output GaAs infrared LED with a high-sensitivity, high-gain Si photo-IC. The photo-IC supports a wide range of systems (3.3 V to 12 V), enabling the device to consume less power than conventional devices. The device also features a narrow slit width and high resolution.
The TLP1031A is a high‑withstanding‑voltage photointerrupter with a GaAs infrared LED and a high‑sensitivity Si photo‑IC. It offers digital open‑collector output, low power consumption, and a narrow 0.15 mm slit for high resolution.
The device is supplied in a compact 7.4 mm × 4.5 mm package, designed for direct PCB mounting with positioning pins. Detailed electrical ratings, recommended operating conditions, and handling precautions are provided for reliable integration into VTRs, printers, scanners, and other electronic equipment.
| Package height | 7.4 mm |
|---|---|
| Package depth | 4.5 mm |
| Gap | 2 mm |
| Slit width | 0.15 mm |
| Supply voltage (Voc) | 2.7 V – 15 V |
| Forward current (IF) | 50 mA |
| Reverse voltage (VR) | 5 V |
| Low‑level output current | 16 mA |
| Operating temperature range | -30 °C to 95 °C |
| Weight | 0.4 g (typ.) |
| Switching time (tpLH) | 15 ps (max) |
The device operates with a supply voltage (Voc) from 2.7 V up to 15 V.
The maximum forward current (IF) is rated at 50 mA.
It is designed for direct mounting on a PCB and includes positioning pins for alignment.
Only clean the soldered leads; do not immerse the entire package in cleaning solvent to avoid damaging the LED or photodetector.
