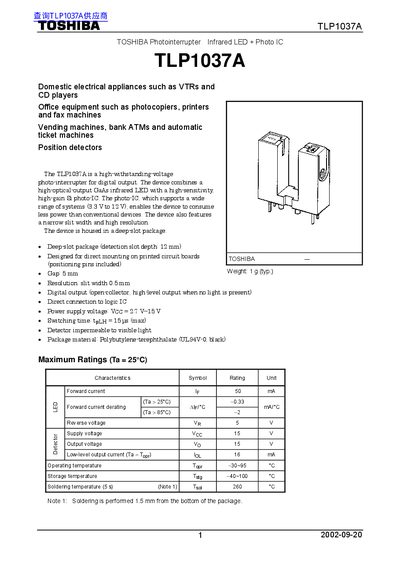

TLP1037A is a high-withstanding-voltage photo-interrupter for digital output. The device combines a high-optical-output GaAs infrared LED with a high-sensitivity, high-gain Si photo-IC. The photo-IC, which supports a wide range of systems (3.3 V to 12 V), enables the device to consume less power than conventional devices. The device also features a narrow slit width and high resolution.
The TLP1037A is a high‑withstanding‑voltage photointerrupter with a GaAs infrared LED and a high‑gain Si photo‑IC, intended for use in domestic appliances, office equipment, vending machines, ATMs and other electronic systems. It offers digital open‑collector output and can operate from 2.7 V to 15 V supply.
The document lists maximum ratings, recommended operating conditions, package dimensions, pin connections, and safety precautions. It also includes characteristic curves for forward current, switching times, and detection position performance, helping designers integrate the device reliably into their circuits.
| Forward current (IF) max | 50 mA |
|---|---|
| Reverse voltage (VR) | 5 V |
| Supply voltage (Voc) range | 2.7 V ~ 15 V |
| Switching time (tpLH) max | 15 ps |
| Weight (typ.) | 1 g |
| Gap between emitter and detector | 5 mm |
| Slit width (resolution) | 0.5 mm |
| Package material | Polybutylene‑terephthalate |
| Output type | Digital open‑collector |
The device operates with a supply voltage (Voc) from 2.7 V up to 15 V.
The maximum forward current (IF) is rated at 50 mA.
It is designed for direct mounting on printed circuit boards with positioning pins included.
Only clean the soldered leads; do not immerse the whole package in cleaning solvent, as chemicals can damage the LED or photodetector.
