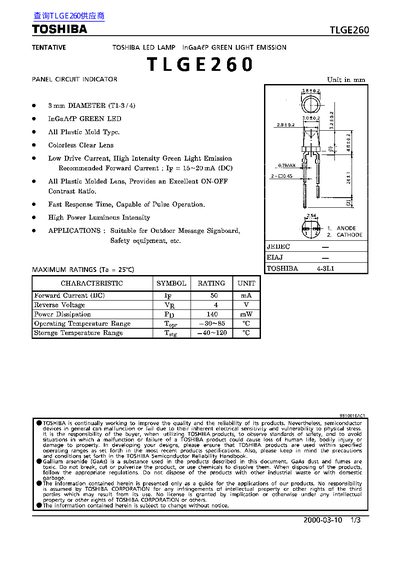

The TLGE260 is a green InGaAsP LED lamp designed for outdoor message signboards and safety equipment. It features a low‑drive current, high intensity output and a clear molded lens for excellent on‑off contrast.
The sheet provides key electrical and optical characteristics, maximum ratings, and recommended soldering practices to ensure reliable operation within the specified temperature and voltage limits.
| Reverse Voltage | 4 V |
|---|---|
| Power Dissipation | 140 mW |
| Recommended Forward Current | 15~20 mA (DC) |
The recommended forward current is 15 ~ 20 mA (DC).
The LED can tolerate a reverse voltage of up to 4 V.
Use a soldering temperature not exceeding 260 °C, keep soldering time under 35 seconds, and ensure leads are formed at least 5 mm from the body.
