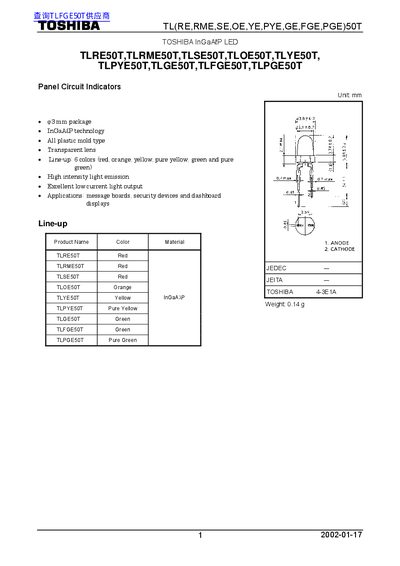

This document describes the features and characteristics of TOSHIBA InGaAℓP LED TL series products, including color, material, size, maximum ratings, and electrical and optical characteristics.
The TL series 50T LEDs from Toshiba are InGaAlP devices offered in six colors (red, orange, yellow, pure yellow, green, pure green). They feature a 3 mm package, transparent lens, high intensity light output and low current operation, suitable for message boards, security devices and dashboard displays.\n\nThe datasheet provides maximum ratings, electrical and optical characteristics, handling precautions, and usage restrictions. It includes forward voltage, reverse voltage, power dissipation, wavelength, and recommended soldering conditions, as well as safety guidance for applications where reliability is critical.
| Package size | 3 mm |
|---|---|
| Weight | 0.14 g |
| Typical wavelength (TLRESOT) | 630 nm |
The series is offered in red, orange, yellow, pure yellow, green and pure green.
