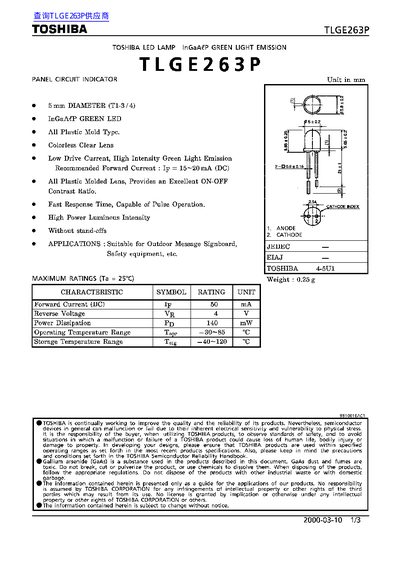

The TLGE263P is a green InGaAsP LED lamp designed for outdoor message signs, safety equipment and other applications. The document lists recommended operating conditions, safety precautions, and handling guidelines, including soldering limits and toxic material warnings.
Key specifications such as forward current, reverse voltage, forward voltage, luminous intensity, peak emission wavelength and temperature ranges are presented, along with radiation pattern curves and forward current versus luminous intensity graphs to aid designers in selecting and integrating the component.
| Recommended Forward Current (DC) | 15~20 mA |
|---|---|
| Reverse Voltage (VR) | 4 V |
| Power Dissipation (Pp) | 140 mW |
| Operating Temperature Range | -30 °C to 85 °C |
| Storage Temperature Range | -40 °C to 120 °C |
| Typical Forward Voltage at 20 mA | 2.8 V |
| Maximum Reverse Current at VR=4 V | 50 µA |
| Maximum Soldering Temperature | 260 °C |
| Maximum Soldering Time | 3 s |
The recommended forward current is 15 to 20 mA DC.
It can operate from –30 °C up to 85 °C.
Soldering temperature must not exceed 260 °C and soldering time must be limited to 3 seconds.
