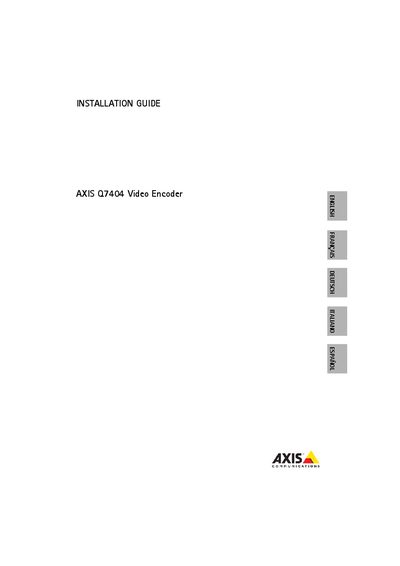

This document provides instructions for installing the AXIS Q7404 on your network.
This guide provides step‑by‑step instructions for installing the Axis Q7404 video encoder in an indoor environment. It includes hardware mounting, connecting network and power cables, and configuring IP addresses for each of the four video channels using Axis IP Utility or Axis Camera Management.
The document also covers legal and EMC considerations, safety notices such as battery replacement (CR2032 lithium battery) and the fact that the unit is not approved for outdoor use. Support information and links to firmware updates are provided at the end of the guide.
| Dimensions (HxWxD) | 35 x 151 x 184/194 mm |
|---|---|
| Weight | 796 g (1.7 lb) |
| Video inputs | 4 (channels 1‑4) |
| LED indicators | Power LED, Network LED, Status LEDs 1‑4 |
| Battery type | 3.0 V CR2032 Lithium |
| IP addresses required | Four (one per channel) |
| Default IP for channel 1 | 192.168.0.90 |
| Outdoor use | Not approved |
The Axis Q7404 requires four IP addresses, one for each video channel.
It uses a 3.0 V CR2032 Lithium battery for its internal real‑time clock.
No, the casing is not approved for outdoor use; it must be installed indoors.
The default IP address for channel 1 is 192.168.0.90.
