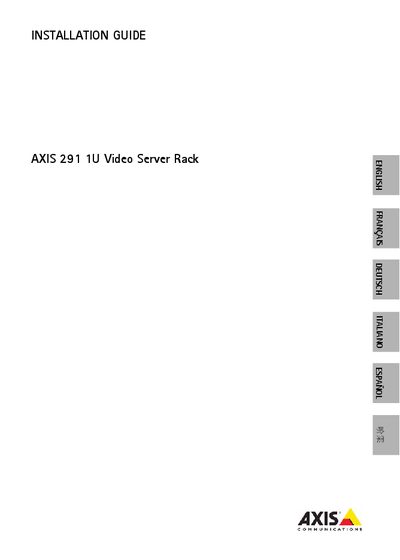

This document describes how to install Axis blade video servers in the AXIS 291 1U Video Server Rack.
This guide provides step‑by‑step instructions for installing the Axis 291 1U Video Server Rack. It includes hardware inventory, mounting procedures for both shelf and 19‑inch rack installations, and details on connecting power and network cables.
The document also outlines placement requirements, safety cautions, and specifications such as input voltage, current, ambient temperature, and supported blade video servers. It serves as a reference for technicians and installers to ensure proper setup and compliance with EMC regulations.
| Input voltage | 100-240V AC, 50/60Hz |
|---|---|
| Input current | 1.9 A |
| Maximum power consumption (3 × AXIS 2430) | 80 W |
| Ambient temperature range | 0 °C to +45 °C |
| Relative humidity range | 20 %–80 % |
| Maximum unit weight | 6 kg |
| Minimum side clearance | 5 cm |
The rack can accommodate up to three Axis blade video servers.
Use the correct AC power cord for your country, and it must be earthed/grounded.
Place the rack in an environment with 0 °C to +45 °C temperature, 20‑80 % humidity, a power source within 1.8 m, at least 5 cm clearance on each side, and keep it free of excessive dust.
