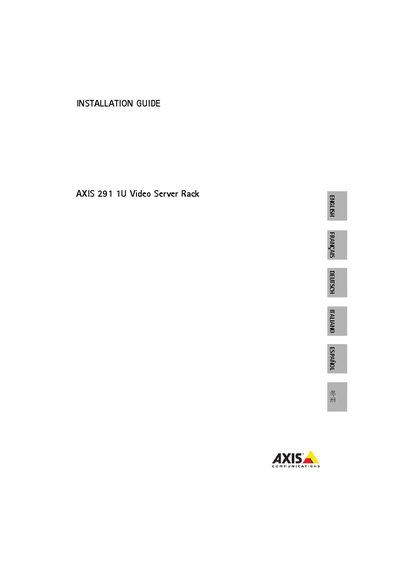

This document describes how to install Axis blade video servers in the AXIS 291 1U Video Server Rack.
This guide explains how to install the Axis 291 1U Video Server Rack, which can hold up to three Axis blade video servers. It includes hardware inventory, rack‑mounting steps, power connection, and wiring details.
The document also lists environmental and safety requirements such as temperature range, humidity, clearance, grounding, and the need for an appropriate AC power cord for each region.
| Input voltage | 100-240V AC, 50/60 Hz |
|---|---|
| Input current | 1.9 A |
| Maximum power consumption (3 × AXIS 2430) | 80 W |
| Ambient temperature range | 0 °C to +45 °C (32 °F to 113 °F) |
| Relative humidity range | 20 % to 80 % |
| Power source distance | Within 1.8 m |
| Side clearance | Minimum 5 cm free space each side |
| Maximum rack weight | 6 kg |
The rack can accommodate up to three Axis blade video servers.
No, the rack powers up as soon as the power cord is connected and powers down only when the cord is disconnected.
