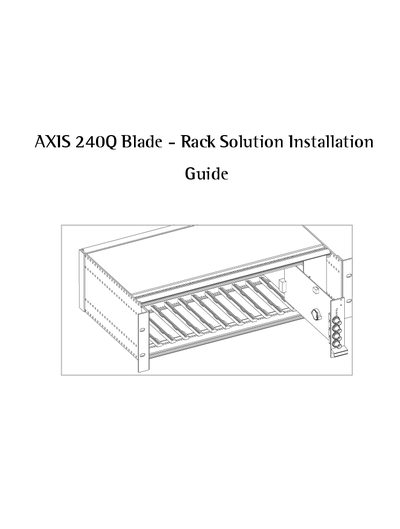

This document is an addendum to the AXIS 240Q Installation Guide and User’s Manual. It includes instructions for installing the Axis Rack Mounted Video Server Solution on your network. The document also covers topics such as intellectual property rights, legal considerations, and electromagnetic compatibility.
This document provides step‑by‑step instructions for installing the Axis 2400 Blade rack‑mounted video server solution. It includes hardware inventory, connector wiring, DIP switch settings, and mounting procedures for up to 12 blade servers in a rack.
The guide also contains safety and EMC approvals, mechanical dimensions, power requirements, and technical specifications for the complete rack solution, as well as battery replacement information and troubleshooting tips.
| Safety Approvals | EN60950 |
|---|---|
| EMC Approvals | EN 55 024:1998 + A1, EN 55 022:1998 + A1 |
| Rack Dimensions | Height 52" (13.2 cm), Width 19.0" (48.2 cm), Length 11.8" (30.0 cm), Weight 7.3 lb (3.3 kg) |
| Video Server Dimensions | Height 1.2" (3.1 cm), Width 5.1" (12.9 cm), Length 10.0" (25.5 cm), Weight 0.5 lb (0.23 kg) |
| Power Input | 100‑240 VAC, 50‑60 Hz, 1.6 A |
| Operating Temperature | 40°F to 125°F (5°C to 50°C) |
| Operating Humidity | 20‑80 % RH |
It uses a 3.0 V CR2032 Lithium battery that typically lasts a minimum of five years.
The AXIS 2400 Blade can accommodate up to four separate video sources via coaxial BNC connectors.
The system requires 100‑240 VAC, 50‑60 Hz input power with a current draw of 1.6 A.
It complies with FCC Part 15 Subpart B Class B, EN 55022 Class B, and other regional EMC standards.
