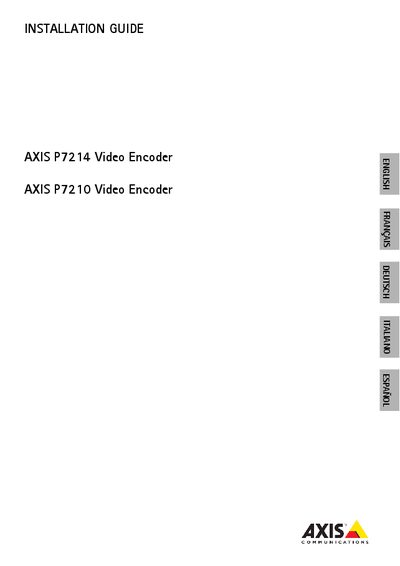

This document includes instructions for installing the AXIS P7214/P7210 on your network. Previous experience of networking will be beneficial when installing the product.
This Installation Guide provides step‑by‑step instructions for installing the Axis P7214/P7210 video encoders on a local network. It includes safety, legal, and regulatory information, as well as details on power adapters, battery type, and compliance with RoHS and WEEE directives.
The guide walks you through checking package contents, reviewing the hardware overview, mounting the unit (wall or rack), connecting power (DC or PoE), attaching network and video/audio cables, and configuring the device’s IP address and password. It also notes that the encoders are intended for indoor use only.
| Dimensions (mm) | 37 × 109 × 172 (P7214), 45 × 440 × 165 (P7210) |
|---|---|
| Weight | 570 g (1.26 lb) (P7214), 2540 g (5.6 lb) (P7210) |
| Power adapter type | PS‑K for P7214, PS‑P for P7210 |
| Battery | 3.0 V CR2032 Lithium battery (minimum 5 years life) |
| Video inputs | 4 video input connectors |
| Network connector | PoE capable Ethernet port |
| LED indicators | Power, status, network LEDs |
No. The casing is not approved for outdoor use; the product may only be installed in indoor environments.
The P7210 provides four video input connectors.
