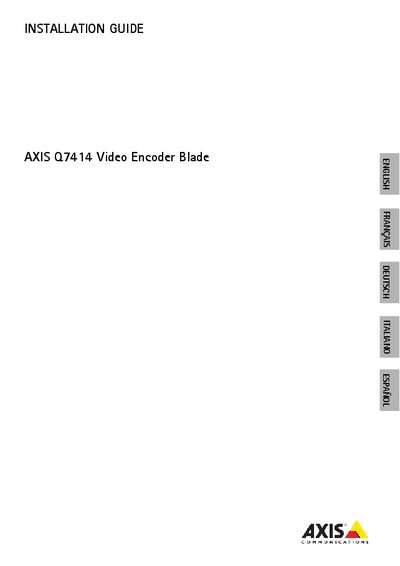

Axis 07414 (Q7414) Video Encoder Blade Installation Guide

This document is the AXIS Q7414 Video Encoder Blade installation guide.

Brand: AXIS
Category: Other
Document type: Installation Guide
Language: English
Pages: 90
File format: PDF
File size: 2.4 MB
Published: 01 June, 2012
Updated: 30 September, 2023
Model: Q7414
MD5 checksum: EF42BC9CEDE5BF3EA2B9E46CB2E0527A
PDF: Axis 07414 (Q7414) Video Encoder Blade Installation Guide PDF

About this manual

This Installation Guide explains how to mount the Axis 07414 (Q7414) video encoder blade in the AXIS 291 1U Video Server Rack or AXIS 07900 Rack, and provides safety and legal considerations for the product. It also covers battery replacement, regulatory compliance and support information.

The guide details the hardware overview (dimensions, LEDs, connectors, video inputs), the installation steps, IP address configuration (DHCP or static defaults such as 192.168.0.90‑93), and password setup using Axis IP Utility or Axis Camera Management. It includes troubleshooting tips for network or firewall issues.

What's inside

Legal Considerations
Safety
Equipment Modifications
Installation steps
Hardware overview
Assign an IP address
AXIS IP Utility
Battery replacement
Support

Specifications

Dimensions	30 x 129 x 255 mm (1.2" x 5.1" x 10.0")
Video inputs	4
Battery type	3.0 V CR2032 Lithium
Default IP address (channel 1)	192.168.0.90

Frequently asked questions

How long does the internal battery last under normal conditions?

The CR2032 battery is expected to last a minimum of five years before it may need replacement.

Which racks is the AXIS 07414 blade designed to be installed in?

It is designed for the AXIS 291 1U Video Server Rack and the AXIS 07900 Rack.
