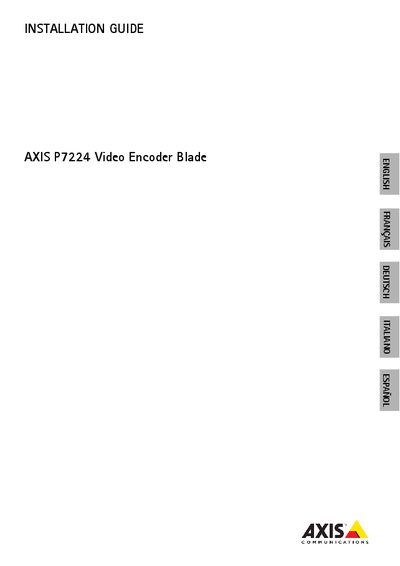

Axis P7224 Video Encoder Blade Installation Guide

This document includes the installation guide for AXIS P7224 Video Encoder Blade and reminds users to check local laws before using the product for surveillance purposes. The product includes four H.264 decoder licenses.

Brand: AXIS
Category: Other
Document type: Installation Guide
Language: English
Pages: 84
File format: PDF
File size: 2.4 MB
Published: 01 June, 2012
Updated: 28 September, 2023
Model: P7224
MD5 checksum: 3A3A2C14863FDEB2002ACB7D9AE552B4
PDF: Axis P7224 Video Encoder Blade Installation Guide PDF

About this manual

This guide explains how to install the Axis P7224 Video Encoder Blade into supported racks, connect power and video cables, and configure network settings. It includes a hardware overview, package contents, and detailed installation steps.

The document also covers safety handling, battery replacement, regulatory compliance (EMC, RoHS, WEEE) and troubleshooting tips such as default IP address and firewall checks.

What's inside

Legal Considerations
Safety
Safeguards
Package Contents
Hardware Overview
Install the Hardware
Assign an IP address
Battery Replacement

Specifications

Battery type	3.0V CR2032 Lithium
Video inputs	4

Frequently asked questions

What is the default IP address if no DHCP server is available?

The default IP address is 192.168.0.90.

Download PDF (2.4 MB)
