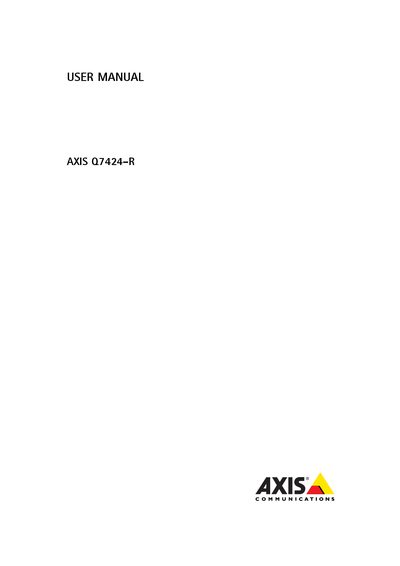

AXIS Q7424-R user manual, introduces the use and management of the video encoder
The Axis Q7424‑R Video Encoder User Manual is intended for administrators and end‑users who need to install, configure, and manage the device on a network. It covers hardware overview, network setup, streaming options, and advanced features such as PTZ control and event handling.
Key sections include hardware description, accessing the product via browser or Internet, root password configuration, video and audio stream settings, digital I/O usage, and troubleshooting. Technical specifications and regulatory compliance information are also provided.
| Network connector | RJ‑45 Ethernet with Power over Ethernet (PoE) support |
|---|---|
| SFP connector | Optional SFP module, priority over RJ‑45 |
| Power connector | 3‑pin terminal block for power input |
| SD card slot | Standard or high‑capacity SD card (not included) for local recording |
A shielded STP (shielded twisted pair) network cable is required for outdoor or harsh environments.
Yes, the RJ‑45 Ethernet connector supports Power over Ethernet (PoE).
Configure the product to use the Java applet for Motion JPEG streaming instead of the AXIS Media Control plug‑in.
