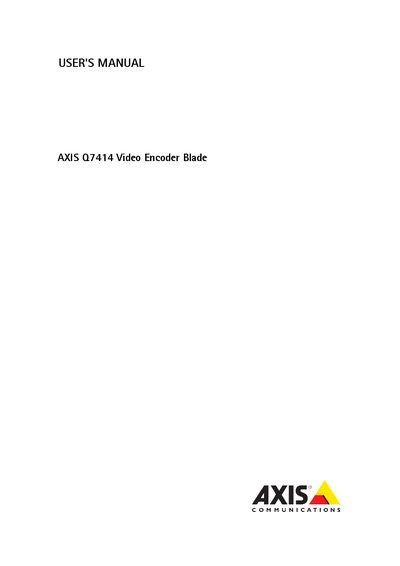

AXIS Q7414 Video Encoder Blade User's Manual, describes how to use and manage the encoder on your network
This manual covers the Axis Q7414 Video Encoder Blade, a network video encoder that supports H.264 and Motion JPEG streams, up to four video channels with two‑way audio, and ONVIF v1.02 integration. It describes key features, LED indicators, and performance considerations for optimal bandwidth and frame‑rate usage.
The guide explains how to access the device via a web browser, set the root password (optionally over HTTPS), configure network settings, enable NAT traversal for remote access, and use the Live View page. It also includes troubleshooting, firmware upgrade procedures, and reference tables for ports, PTZ control, and security options.
| Channels | 4 video channels with two‑way audio |
|---|---|
| Supported video formats | H.264 and Motion JPEG |
| Maximum frame rate | 30 fps (NTSC) / 25 fps (PAL) up to D1 resolution |
| ONVIF support | v1.02 |
| H.264 decoder licenses | 4 licensed decoder licenses |
When you first access the encoder, the ‘Configure Root Password’ dialog appears; you can set the password directly or create a self‑signed HTTPS certificate for a secure connection.
The recommended browsers are Microsoft Internet Explorer on Windows, Safari on macOS, and Firefox on other operating systems.
