The P6SMBJ series 600W surface mount transient voltage suppressor features glass passivated die construction, 600W peak pulse power dissipation, 5.0V-170V standoff voltage, uni- and bi-directional versions available, excellent clamping capability, fast response time, plastic case material has UL flammability classification rating 94V-O, etc.

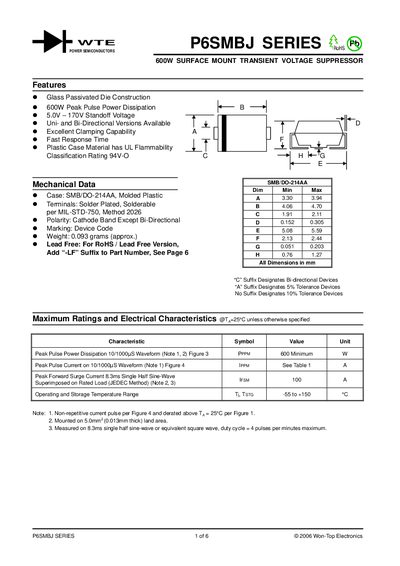

The P6SMBJ series consists of 600 W surface‑mount transient voltage suppressor (TVS) devices available in both uni‑directional and bi‑directional versions. The series offers a wide standoff voltage range (5 V‑170 V), excellent clamping capability, fast response time, and a plastic case with UL flammability rating. Mechanical data such as case dimensions, terminal size, and weight are listed for the SMB/DO‑214AA package.
The document includes maximum ratings, electrical characteristics, derating curves, marking conventions, recommended PCB footprints, and packaging information (tape & reel). Ordering details describe part‑number suffixes for RoHS/lead‑free versions and minimum shipping quantities.
| Peak Pulse Power Dissipation | 600 W |
|---|---|
| Standoff Voltage Range | 5 V‑170 V |
| Weight (typical) | 0.093 g |
The “-LF” suffix indicates a RoHS/lead‑free version of the part.
The series is supplied in tape & reel packaging, with quantities listed for reels and cartons.
